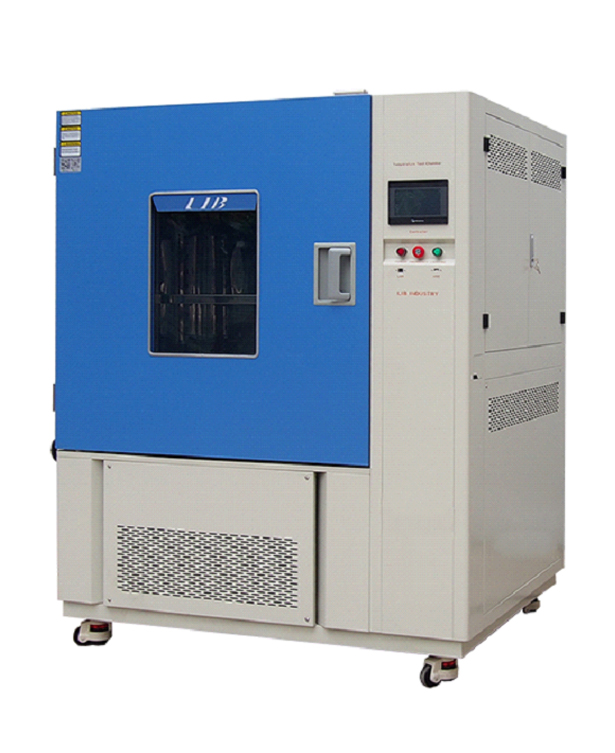

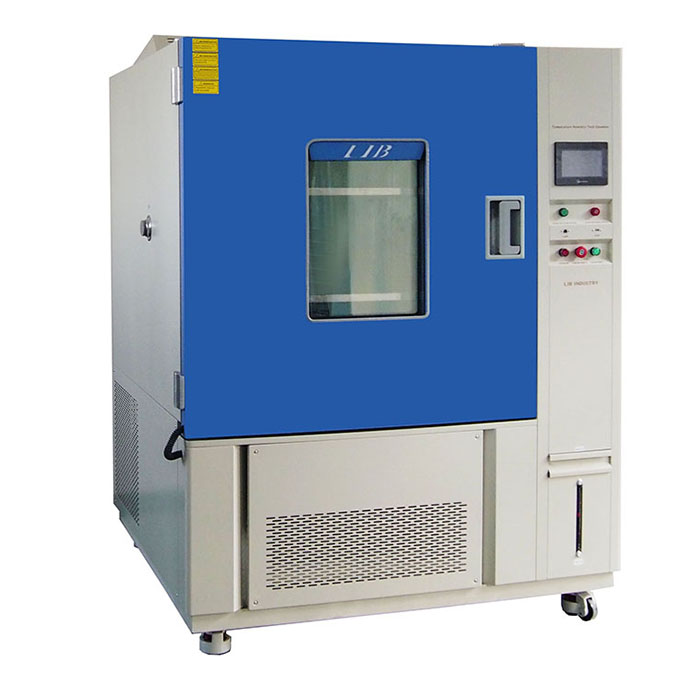

TH-100/ TH-225/TH-500/TH-800/TH-1000
LIB Industry
| Quantity: | |
|---|---|
The system provides a temperature range from -70°C to +150°C and humidity control from 10% RH to 98% RH, allowing users to simulate a broad variety of natural and accelerated aging environments. High-precision PT100 Class A sensors continuously monitor chamber conditions, while intelligent PID control maintains temperature stability within ±0.5°C and humidity stability within ±2.5% RH. Combined with optimized air circulation, the chamber ensures uniform environmental conditions throughout the workspace, delivering reliable and repeatable test results for both small components and large assemblies.
Key Features of the Aging Test Environmental Condition Unit Temperature Humidity Control
1. Accurate Temperature and Humidity Control: The chamber utilizes high-precision sensing technology and intelligent PID regulation to maintain highly stable environmental conditions. PT100 Class A temperature sensors provide accurate monitoring, while advanced humidity control systems ensure precise moisture regulation. This enables reliable reproduction of long-term aging environments and minimizes test deviations between batches.
2. Uniform Environmental Distribution: A specially designed airflow circulation system distributes conditioned air evenly throughout the workspace. Multiple air outlets and centrifugal circulation fans eliminate localized hot spots and humidity variations, ensuring every sample experiences identical test conditions regardless of placement within the chamber.
3. Broad Environmental Simulation Capability: The chamber supports a wide operating range from extreme low temperatures to elevated heat and high humidity conditions. Engineers can simulate cold storage, tropical climates, warehouse environments, transportation conditions, accelerated aging, and long-term product reliability scenarios within a single testing system.

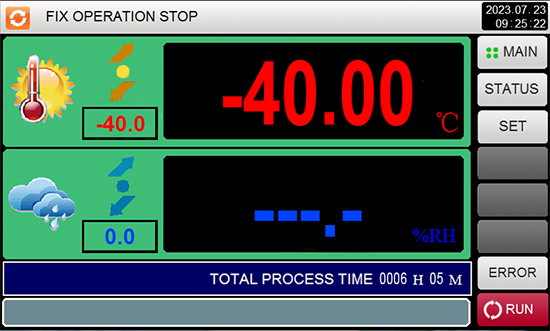

4. Intelligent Touchscreen Programming: A color touchscreen controller allows users to create and store up to 120 test programs with 100 programmable segments per program. Complex temperature and humidity profiles can be executed automatically without manual intervention. Real-time data display, trend monitoring, alarm history, and remote communication functions improve testing efficiency and simplify operation.
5. Durable Construction and Long Service Life: The interior chamber is manufactured from SUS304 stainless steel for excellent corrosion resistance under high-humidity conditions. The exterior structure uses reinforced A3 steel with a durable protective coating, providing mechanical strength and long-term reliability. High-quality insulation materials improve thermal efficiency while reducing energy consumption during operation.
6. Comprehensive Safety Protection: Multiple protection systems safeguard both operators and test samples throughout testing. Features include over-temperature protection, compressor overload protection, water shortage alarms, leakage current monitoring, phase protection, grounding protection, and emergency stop functions. These safety measures ensure stable chamber operation during long-duration aging programs.
Equipment Specifications of the Aging Test Environmental Condition Unit Temperature Humidity Control
| Name | Temperature And Humidity Chamber | ||||
| Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
| Internal dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
| Capacity | 100L | 225L | 500L | 800L | 1000L |
| Temperature range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
| Humidity Range | 20%-98%RH | ||||
| Temperature deviation | ± 2.0 ℃ | ||||
| Temperature Fluctuation | ± 0.5 ℃ | ||||
| Heating rate | 3 ℃ / min | ||||
| Cooling rate | 1 ℃ / min | ||||
| Controller | Programmable color LCD touch screen controller, Ethernet and USB connections | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Water supply system | Automatic water supply,Water purification system | ||||
| Safety System | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
| Interior material | SUS304 stainless steel | ||||
| Exterior material | A3 Steel Plate with protective coating | ||||

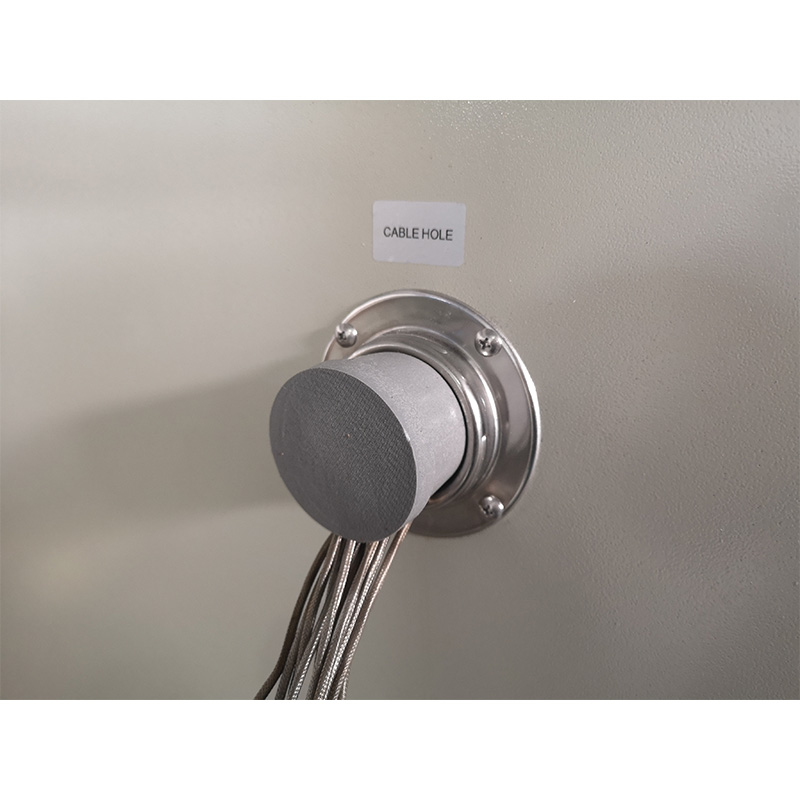

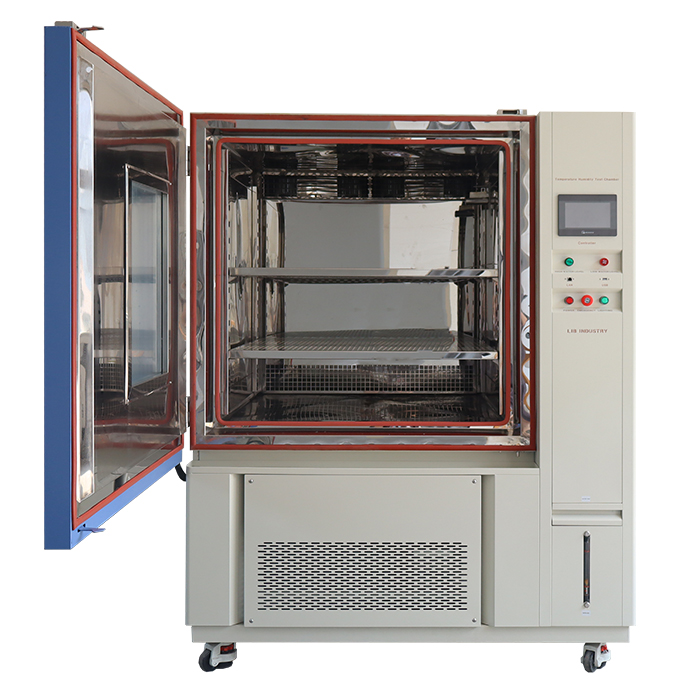

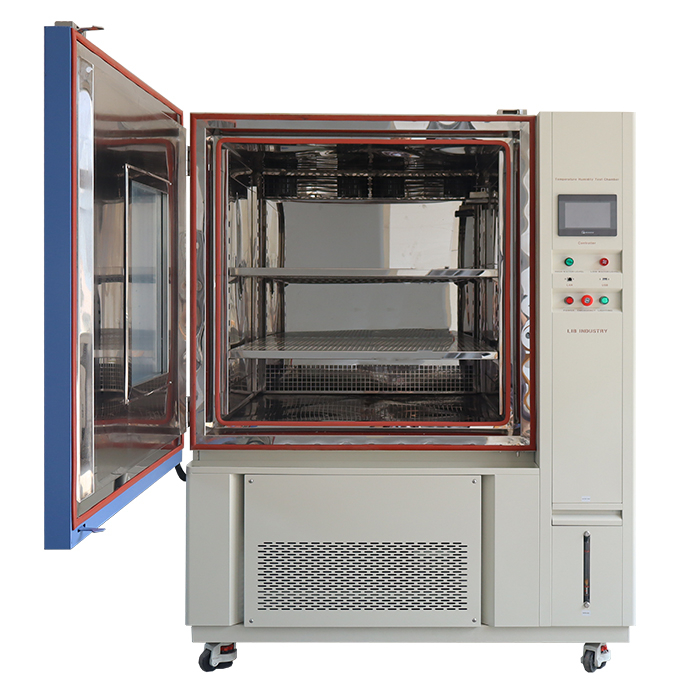

| Standard configuration | 1 Cable hole with silicone rubber plug; 2 sample shelves | ||||
Industries and Typical Tests
The Aging Test Environmental Condition Unit Temperature Humidity Control is widely used across numerous industries. In automotive applications, it supports environmental validation of ECUs, sensors, connectors, wiring harnesses, batteries, and charging systems according to ISO 16750, LV124, and LV148 requirements. In electronics manufacturing, it is used for 85°C/85% RH damp heat testing, thermal aging, reliability screening, and semiconductor qualification under JESD22 standards. Aerospace and defense organizations utilize the chamber for environmental conditioning and durability testing in accordance with MIL-STD-810 requirements. Pharmaceutical laboratories perform stability studies following ICH Q1A conditions, while renewable energy manufacturers conduct long-term reliability testing on photovoltaic modules, inverters, and energy storage systems. Material manufacturers also use the chamber for accelerated aging of plastics, rubber, coatings, adhesives, and composite materials.
Video of the Aging Test Environmental Condition Unit Temperature Humidity Control
FAQs on the Aging Test Environmental Condition Unit Temperature Humidity Control
Q1: Can the chamber perform long-term aging tests lasting several months?
Yes. The chamber is designed for continuous operation and can perform long-duration aging tests ranging from several days to several months while maintaining stable temperature and humidity conditions throughout the entire test period.
Q2: Can customized cable ports, shelves, or sample fixtures be added?
Absolutely. LIB offers full customization of cable ports, access openings, shelves, observation windows, internal fixtures, and chamber dimensions to meet specific testing requirements and sample configurations.
Q3: Does the chamber support remote monitoring and data export?
Yes. The controller supports Ethernet communication, USB data export, remote monitoring, and test data recording, allowing users to manage tests and access historical data conveniently.
