In today's highly competitive manufacturing environment, product reliability under real-world conditions is no longer optional—it is a fundamental requirement. Electronic devices, automotive components, and aerospace systems are increasingly exposed to rain, humidity, splashing water, and airborne particles throughout their service life. To ensure long-term durability and compliance with international protection standards, manufacturers rely on specialized environmental simulation equipment. Among these, the Water Spray Test Chamber plays a critical role in evaluating waterproof performance in a controlled and repeatable manner.

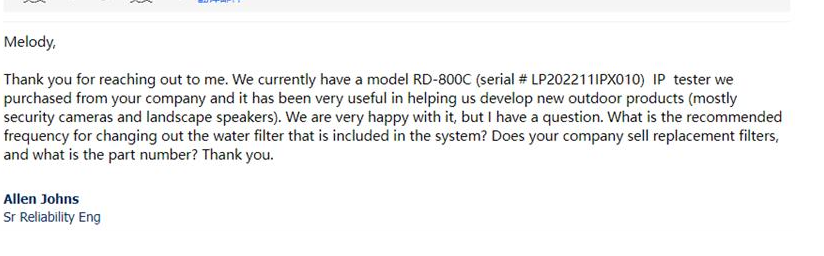

The importance of accurate waterproof testing is further validated by feedback from real users in demanding industries. A senior reliability engineer from a U.S.-based electronics manufacturer recently shared his experience with a LIB IP test chamber, stating:
“We currently have a model RD-800, we purchased from your company and it has been very useful in helping us develop new outdoor products (mostly security cameras and landscape speakers. We are very happy with it…” This positive evaluation highlights how LIB's waterspray test chambers are not only compliant with standards, but also trusted by professionals developing high-performance outdoor electronics.
Advantages of Water Spray Test Chamber
The Water Spray Test Chamber is merely a test device used to test the water proofness of different items. It's widely used in industries such
as electronics, automotive, and aerospace. We will speak about the advantages, innovation, safety, use, how to use, service, quality, and application connected with lib IP55 test chamber，water test chamber，dust test chamber.
One major advantage of the Water Spray Test Chamber is its ability to accurately test the waterproofness of products. This controlled LIB IPX4 test chamber, waterproof test chamber, water spray chambermachine has a water system that makes the testing process consistent, allowing the user to specify the amount of water to spray and the duration of the test.
Another significant advantage of the Water Spray Test Chamber is its capability to test multiple products at once. The machine is designed with various compartments for placing products, reducing the cost and time of research and development.
The Water Spray Test Chamber is an innovative machine designed with the latest technology. It features a digital control that allows the user to manage parameters such as water flow, water quantity, and temperature. The lib water proof test chamberalso includes safety features, such as an automatic shut-off in case of emergencies, ensuring user safety and the machine's longevity.
LIB water test chambers are designed in strict accordance with international IP protection standards, ensuring that test results are globally
recognized. This compliance allows manufacturers to confidently certify their products for international markets, reducing the risk of regulatory rejection or post-market failures.
Safety is a critical consideration in the design of LIB water spray test chambers. The system includes multiple safety features to protect both operators and equipment, such as: Automatic shut-off in case of abnormal water pressure or electrical faults, Overload and leakage protection, Emergency stop functions, Corrosion-resistant materials to prevent long-term degradation. These features not only ensure operator safety but also extend the service life of the machine, making it a reliable long-term investment.
How to Use Water Spray Test Chamber
Before operating the Water Spray Test Chamber, users should carefully review the user manual provided by LIB Industry. Proper setup and parameter configuration are essential for obtaining accurate test results.
The general testing procedure includes:
1. Sample Placement
Products to be tested are securely mounted on adjustable sample racks or turntables inside the chamber to ensure uniform water exposure.
2. Parameter Configuration
Test parameters such as water flow rate, spray duration, and rotation speed are set through the digital control panel according to the required IP rating.
3. Test Execution
Once configured, the chamber is activated, and the automated system carries out the test sequence without manual intervention.
4. Result Evaluation
After the test, products are inspected for water ingress, functional failure, or structural damage based on relevant test standards.

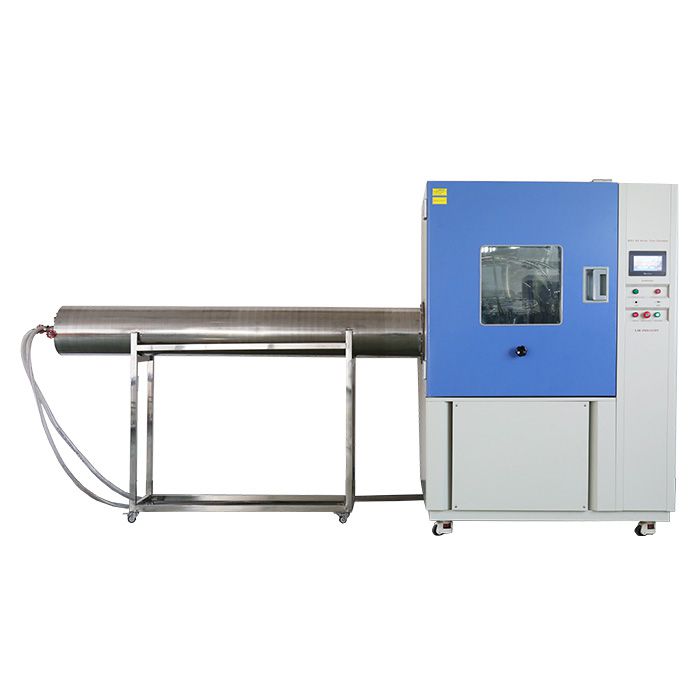

Model | RD-800C | RD-1200C | |
Dimension | Internal dimensions | 900*950*950mm -D*W*H | 1300*1350*1370mm -D*W*H |
Overall dimensions | 1180*1420*1920mm -D*W*H | 1540*1820*2200 -D*W*H | |

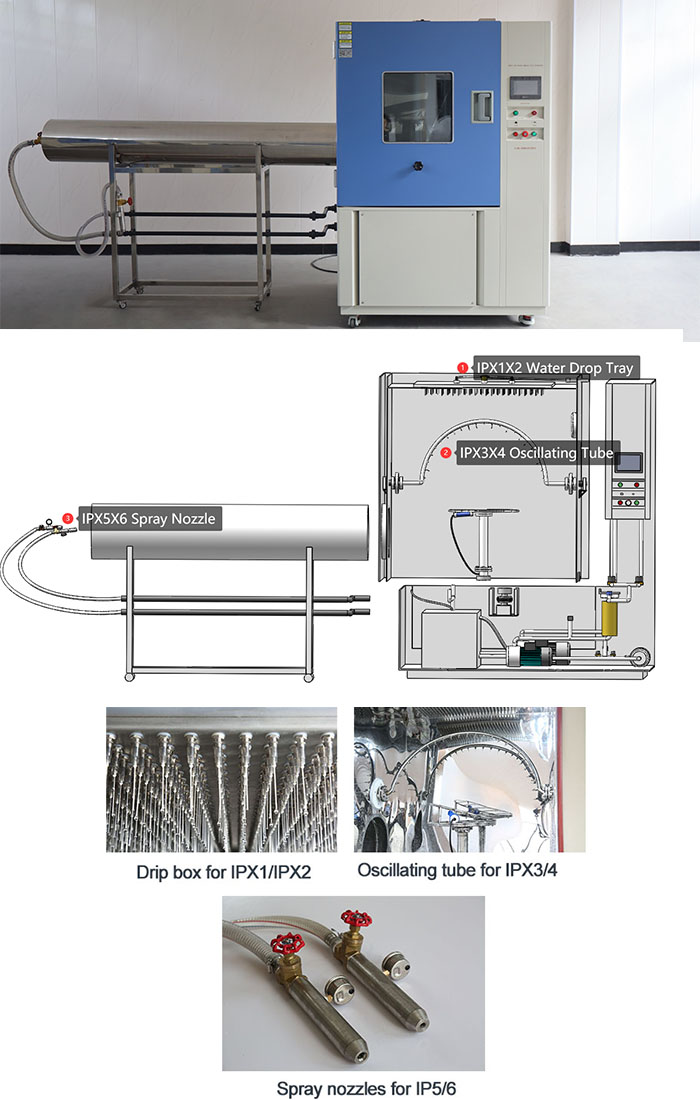

IPX5 IPX6 tube dimensions | Length is 2000mm, diameter is 325mm | Length is 2000mm, diameter is 325mm | |
IPX3 IPX4 | Oscillating tube radius | 400mm | 600mm |
Spraying hole diameter | φ0.4mm | ||
Hole spacing | 50 mm | ||
Number of holes | 25 | 37 | |
Oscillating tube range | 0~ ±180° | ||
Swivel velocity speed of tubes | 60°/seconds | ||
IPX5 IPX6 | Nozzle diameter | Dia 6.3mm for IPX5 nozzle diameter, Dia12.5mm for IPX6 nozzle diameter | |
Water flow rate | 12.5L/min ±5 for IPX5 test, 100L/min ±5 for IPX6 test | ||
Core of the substantial stream | circle of approximately 40 mm diameter at 2,5 m distance from nozzle | ||
Turntable | Diameter | 600mm | |
Height | 350~600mm, adjustable | ||
rotation speed | 1~5r/min (adjustable) | ||
Controller | Programmable color display touch screen controller, PC Link with software, Ethernet interface | ||
Water supply system | Storage water tank, booster pump, Automatic water supply, Water cycling system, Water purification system, Water saving | ||
Exterior material | Rain test chamber adopt Steel Plate with protective coating | ||
Interior material | SUS304 stainless steel | ||
Maintenance, Service, and After-Sales Support
To maintain long-term accuracy and reliability, the Water Spray Test Chamber requires periodic maintenance and calibration. This includes checking spray nozzles, inspecting water filters, and verifying control system performance.
LIB Industry provides comprehensive after-sales services, including: Technical training, Preventive maintenance guidance, Spare parts supply, Remote and on-site technical support
As reflected in customer feedback from the U.S. electronics industry, questions such as water filter replacement frequency and spare part availability are handled professionally, ensuring uninterrupted operation and long-term customer satisfaction.
Looking for a reliable water spray or dust test chamber for your application? Contact LIB Industry today to discuss your testing requirements and receive a customized solution from our environmental testing experts.
