THV-1000
LIB Industry
| Quantity: | |
|---|---|

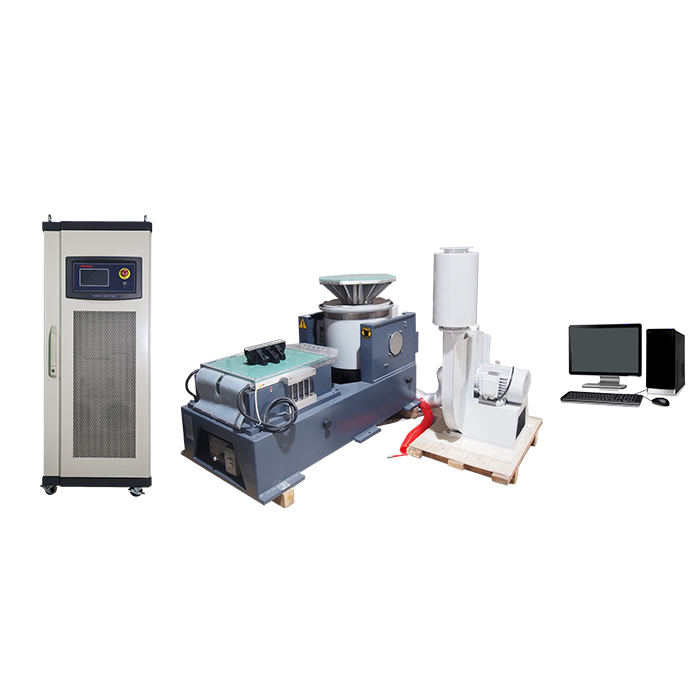

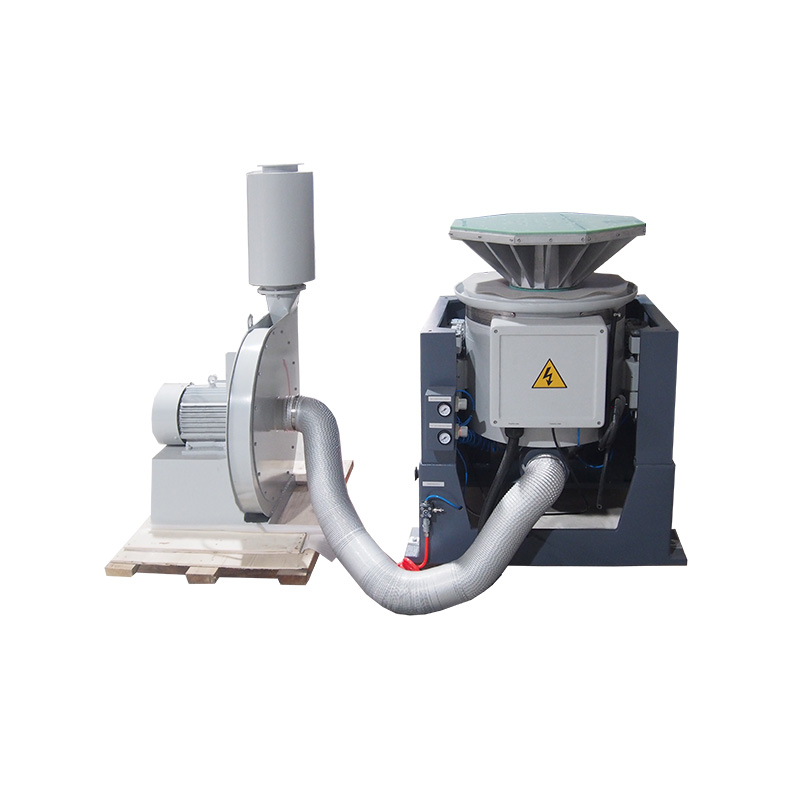

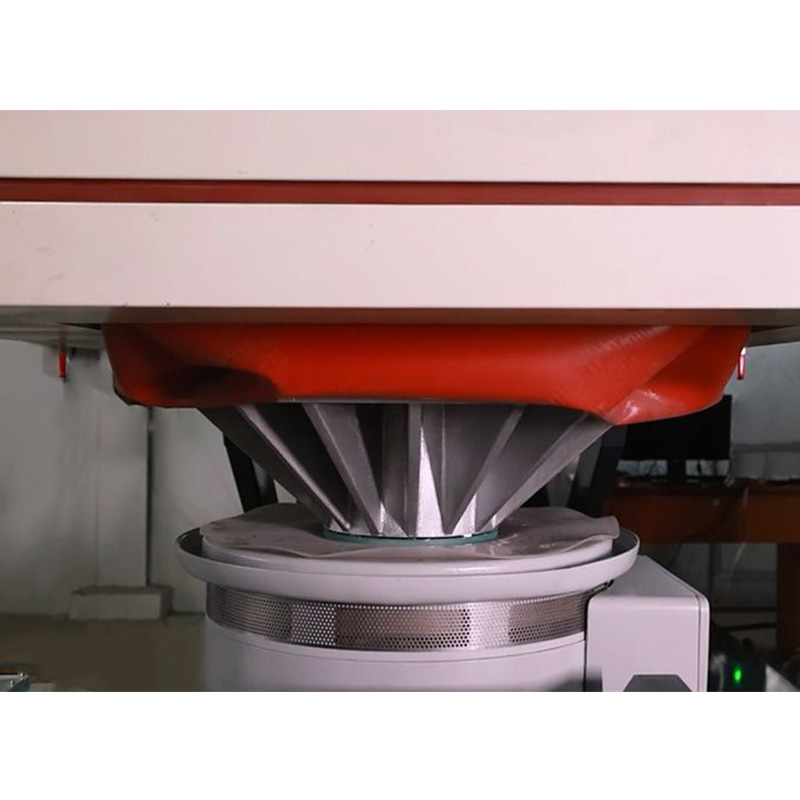

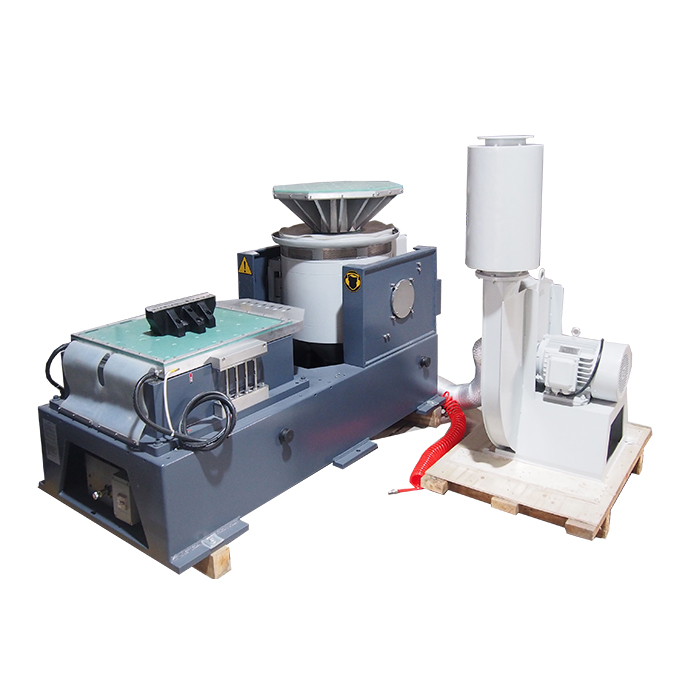

LIB system adopts a modular structure design, where the vibration shaker is installed as an external excitation platform connected to the temperature humidity chamber. The chamber maintains a stable climatic environment while the shaker applies controlled mechanical stress to the test sample. The internal chamber is made of SUS304 stainless steel, ensuring corrosion resistance during high humidity and long-duration testing. Optional head expanders and sliding tables allow flexible mounting for different sample sizes and vibration directions.
Advantages of Vibration Test Chambers
1. Add-On Vibration Upgrade for Existing Chambers: LIB provides an external vibration shaker system that can be directly integrated with your existing temperature and humidity test chamber, enabling combined environmental and vibration testing without replacing your current equipment.
2. High Load Capacity and Wide Frequency Range: The vibration system supports loads up to 500 kg with a frequency range of 2–4000 Hz, suitable for testing from small electronic components to large assemblies.
3. Multiple Vibration Modes for Reliability Testing: It supports sine, random, and shock vibration profiles, allowing users to simulate transportation, operation, and mechanical stress conditions in real applications.
4. Flexible and Cost-Effective Testing Solution: Instead of investing in a fully new combined chamber, the vibration system can be added to existing climatic chambers, significantly reducing cost while expanding testing capability.
5. Easy Installation and System Compatibility: The vibration shaker is designed for quick integration with most standard temperature and humidity chambers, ensuring stable mechanical coupling and synchronized operation. It minimizes modification requirements to existing equipment, allowing laboratories to upgrade testing capability with minimal downtime.
Technical Data
Model | THV-1000 | ||
Internal Dimension (mm) | 1000*1000*1000 | ||
Overall Dimension (mm) | 1800*4600*2600 | ||
Interior Volume | 1000L | ||
Parameter | Temperature Range | —50℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 30% ~ 98% RH | ||
Humidity Deviation | ± 2.5% RH | ||
Cooling Rate | 5 ℃ / min | ||
Heating Rate | 5 ℃ / min | ||
Rated Force of Vibration | 1000kgf | ||
Frequency Range of Vibration | 2 to 4000 Hz | ||
Armature Diameter of shaker | φ240mm | ||
Structure | Cooling | Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor | ||
Refrigerant | Environmentally friendly | ||
Heating Element | Nichrome heater | ||
Controller | Programmable color LCD touch screen controller，Ethernet connection， USB | ||
Humidity | Water supply system | Automatic water supply | |
Water supply system | Water purification system | ||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
Dehumidification | Evaporator | ||
Vibration | horizontal sliding table | 600*600 mm | |

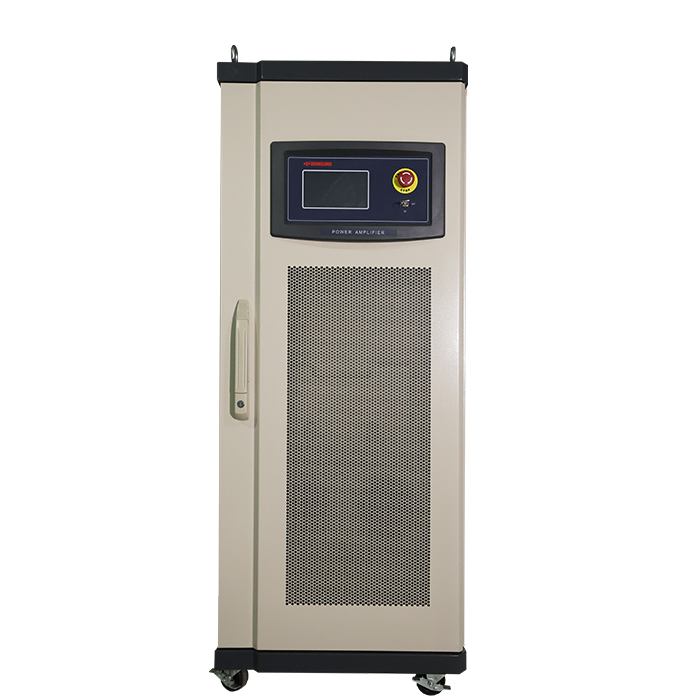

Power Amplifier | Digital power amplifier | ||
Head Expander | 600*600 mm | ||

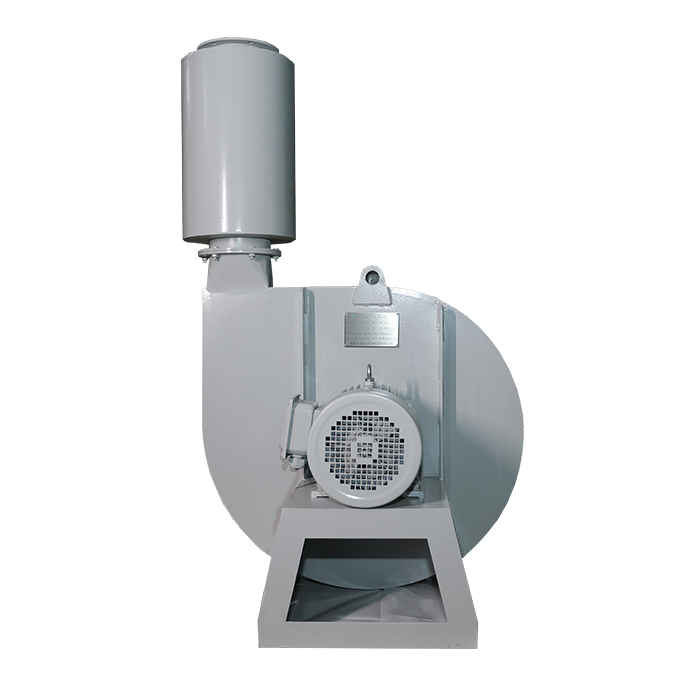

Blower | 4Kw blower, including muffler. | ||
Max load | 500kgs | ||
Sensor | Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |
Humidity Sensor | Dry and wet bulb sensor | ||
Build-in Water Tank (mm) | 270*300*450 | ||
View Window Size (mm) | 330*370 | ||
Air Circulation | Centrifugal wind fan | ||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||
Material | Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | ||
Thermal Insulation | Polyurethane foam and insulation cotton | ||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||
Standard Configuration | Cable hole with plug; 2 shelves | ||
Typical Tests Performed by the Vibration Test Chambers
The vibration test chamber is widely used for evaluating product reliability under combined environmental stress conditions. By integrating temperature, humidity, and vibration, it can simulate real-world operating environments such as transportation, vehicle driving conditions, aerospace vibration stress, and long-term outdoor exposure. Typical tests include temperature cycling combined with random vibration from –40 °C to 85 °C, high-temperature vibration endurance testing at +85 °C, low-temperature vibration testing at –40 °C, and humidity-vibration coupling tests at up to 95% RH. It is also commonly used for mechanical fatigue evaluation under continuous sine vibration between 10 Hz and 2000 Hz, as well as resonance search testing to identify structural weak points in assemblies.
Video of the Vibration Test Chambers
FAQs on the Vibration Test Chambers
Q1: Can I use the vibration system with my existing temperature and humidity chamber?
Yes. The LIB vibration system is designed as an external add-on solution. It can be integrated with most standard temperature and humidity test chambers, allowing combined environmental and vibration testing without replacing your current equipment.
Q2: What vibration modes does the system support?
The system supports sine vibration, random vibration, and shock testing. These modes allow users to simulate transportation vibration, operational stress, and sudden mechanical impacts in real-world conditions.
Q3: What is the maximum load capacity of the vibration system?
The standard system supports loads up to 500 kg. This makes it suitable for small electronic components, automotive modules, and larger industrial assemblies.
