Outdoor sunlight, heat, moisture, and condensation continuously damage plastics, coatings, textiles, rubber, automotive interiors,
and composite materials. Products may fade, crack, chalk, lose gloss, or become brittle within months if their UV resistance is insufficient. Manufacturers therefore rely on accelerated weathering equipment to predict long-term outdoor durability before products enter the market.
A customer from Serbia recently shared positive feedback regarding the LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument: “So far, they didn't have any problem with UV chamber and we tested without any problems… I know that support from your side is excellent and I am grateful.” The chamber is currently being used by the customer’s quality department for routine material durability testing, demonstrating stable performance and reliable operation in daily laboratory applications.
This article explains the applications, operating principles, standard requirements, and selection methods of the LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument, while comparing it with xenon arc technology and demonstrating how it complies with major international standards such as ASTM G154, ISO 4892-3, SAE J2020, and ASTM D4329.
The UVA 340 Fluorescent Lamp Light Fastness Test Instrument is widely used in automotive, coatings, plastics, rubber, textile, ink, and construction material industries to evaluate UV aging resistance under accelerated laboratory conditions. Common test objects include automotive dashboards, door panels, seat materials, industrial coatings, powder coatings, outdoor paints, roofing membranes, plastic pipes, packaging films, rubber seals, and composite materials.
Many manufacturers require compliance with international standards such as ASTM G154, ISO 4892-3, SAE J2020, ASTM D4329, and PV 3929 to verify product durability before mass production and outdoor application.
For example, an outdoor powder coating manufacturer may perform ASTM G154 Cycle 1 testing using UVA-340 lamps at 340 nm with 8 hours UV exposure at 60 °C followed by 4 hours condensation at 50 °C. After 1000 hours of accelerated weathering, engineers evaluate gloss retention, color stability, chalking resistance, and surface cracking to determine whether the coating can withstand long-term outdoor sunlight and moisture exposure.
Similarly, automotive plastic parts are commonly tested under UVA-340 lamps because the 340 nm wavelength closely matches the critical short-wave UV region of natural sunlight. The equipment accelerates aging effects including fading, cracking, gloss loss, and mechanical degradation within days or weeks instead of years of outdoor exposure.
UVA 340 fluorescent lamps reproduce the ultraviolet portion of sunlight from 295 nm to 365 nm with very high accuracy. The peak emission at 340 nm closely matches the solar cutoff point of natural daylight, making it ideal for accelerated UV aging studies.
Compared with outdoor exposure testing, UVA 340 testing provides: ① Faster and repeatable results ② Stable irradiance control ③ Continuous operation independent of climate ④ Controlled condensation and moisture cycles ⑤Reduced testing cost and time | Typical irradiance settings follow ASTM G154 requirements, commonly operated at: ① 0.68 W/m²/nm at 340 nm ② Temperature range: 50 °C–70 °C ③ Condensation temperature: 40 °C–50 °C These conditions simulate months or years of outdoor exposure within a significantly shorter period. |

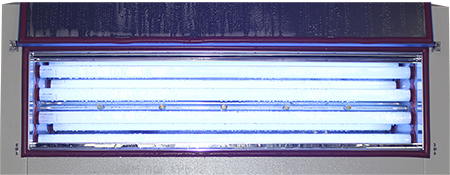

The instrument uses UVA-340 fluorescent lamps to generate ultraviolet radiation that accelerates material degradation. A
programmable controller alternates between UV exposure and condensation cycles to reproduce natural weathering conditions.
The standard operating cycle specified in ASTM G154 commonly includes:
① 8 hours UV exposure at 60 °C
② 4 hours condensation at 50 °C

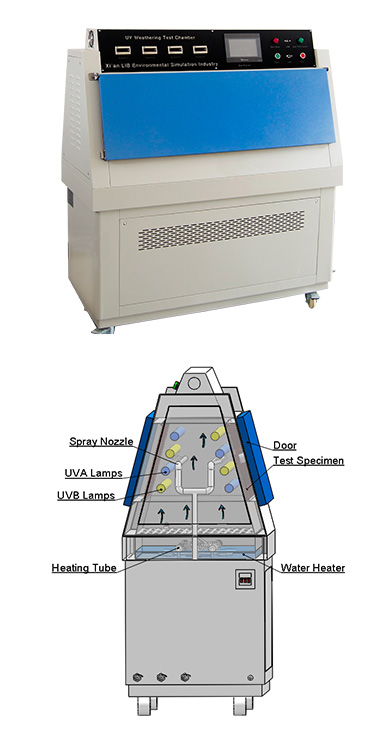

During the UV phase, the lamps simulate sunlight exposure. During condensation, heated water creates 100% humidity to reproduce dew and moisture damage. Combined UV radiation and moisture cycling accelerate coating failure, blistering, cracking, and surface oxidation.
LIB's PID control system maintains stable irradiance fluctuations within ±0.02 W/m²/nm while ensuring temperature uniformity within ±2 °C throughout the testing process.
The LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument mainly focuses on ultraviolet light between 295–365 nm. It is designed specifically for UV durability and accelerated weathering evaluation.
The Xenon Arc Light Fastness Test Instrument provides a full-spectrum simulation from 280–800 nm, including UV, visible light, and infrared radiation. It more accurately reproduces natural sunlight exposure conditions.
Because of this difference:
① UVA 340 systems are ideal for UV-focused degradation studies
② Xenon arc systems are better for complete sunlight simulation including color fading and thermal effects
UVA 340 fluorescent systems generally offer: ① Lower operating costs ② Lower energy consumption ③ Easier maintenance ④ Faster UV aging acceleration | Xenon arc systems require: ① Water-cooled xenon lamps ② Optical filters ③ Higher electrical power ④ More complex maintenance |
For laboratories mainly testing UV resistance of plastics, coatings, inks, rubber, and polymers, UVA 340 systems are often the more economical solution.
Choose the LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument when: ① Testing UV-sensitive materials ② Performing ASTM G154 or ISO 4892-3 testing ③ Evaluating coating durability ④ Conducting accelerated UV aging ⑤ Requiring lower operational costs | Choose a Xenon Arc Light Fastness Test Instrument when: ① Full-spectrum sunlight simulation is required ② Testing automotive interiors ③ Evaluating textile color fastness ④ Simulating outdoor environmental exposure ⑤ Conducting ASTM G155 testing |
| Popular Light Fastness Test Instrument | ||
 |
|  |

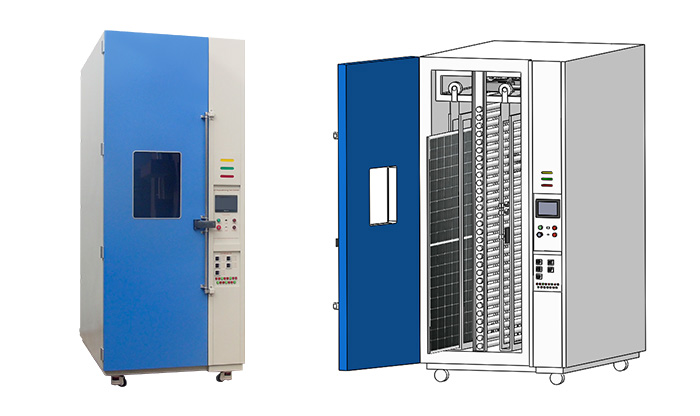

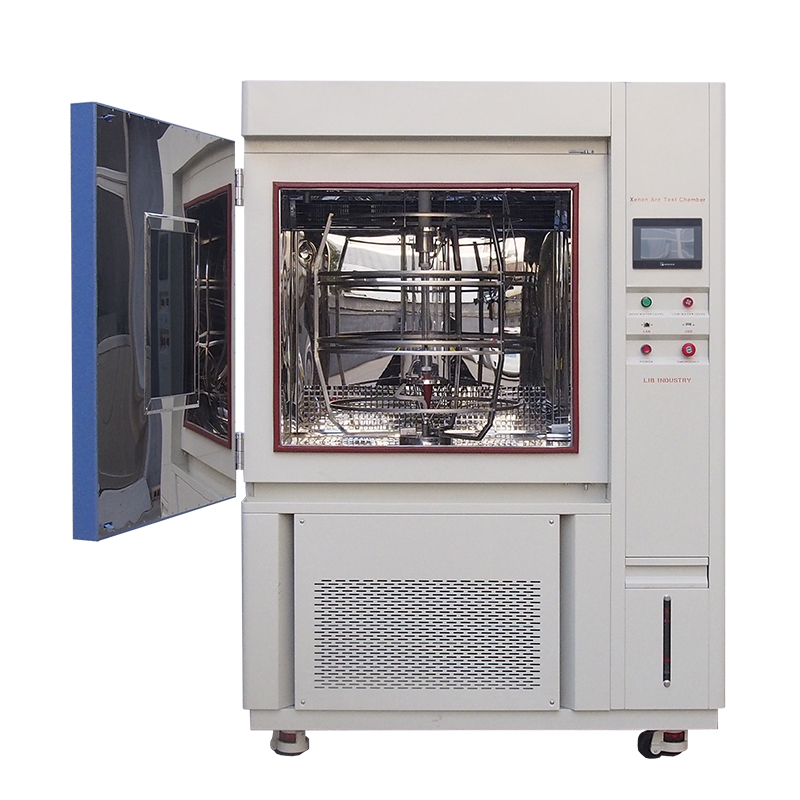

| UVA 340 Fluorescent Lamp Light Fastness Test Instrument | Xenon Light Fastness Test Instrument | UV Exposure Chamber for PV Modules |
One of the most widely used coating weathering standards is ASTM G154. This standard evaluates nonmetallic materials using fluorescent UV lamps and condensation cycles.
A commonly used ASTM G154 Cycle 1 includes:
① UV Exposure: 8 hours at 60 °C using UVA-340 lamps
② Condensation: 4 hours at 50 °C
③ Irradiance: 0.68 W/m²/nm at 340 nm
This cycle is extensively applied for testing: Powder coatings, Automotive paints, Industrial coatings, Outdoor plastic coatings, Architectural finishes.
The test evaluates: Gloss retention,Color stability, Chalking resistance, Crack formation, Adhesion durability.

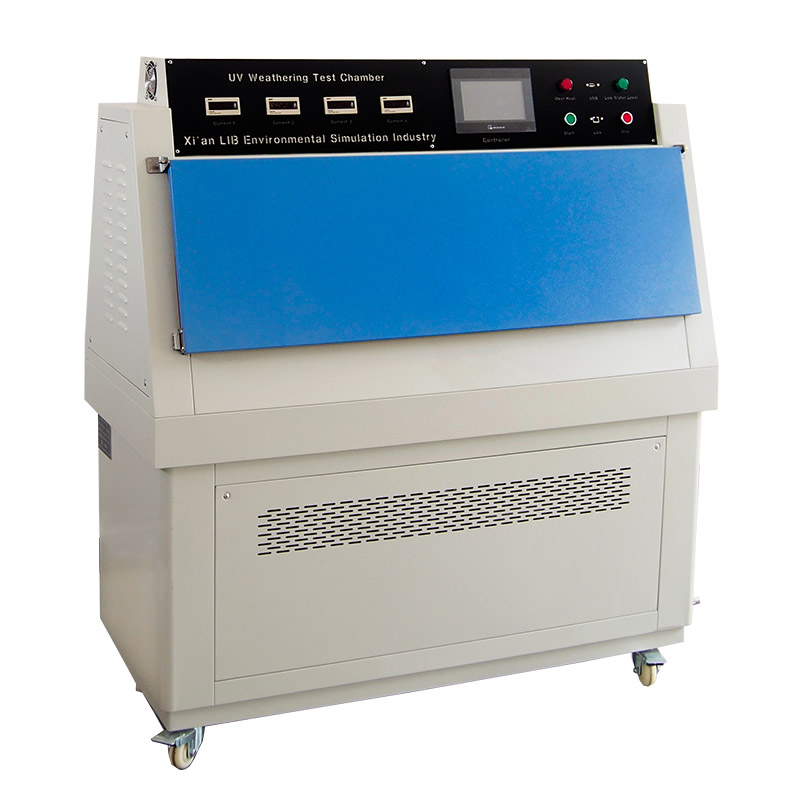

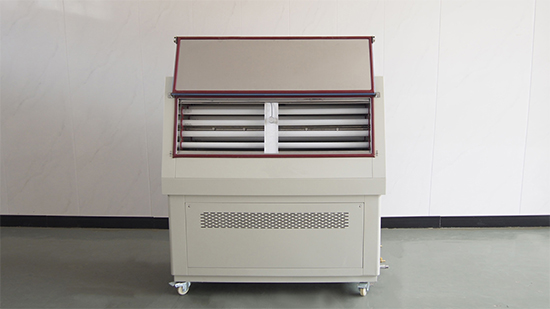

The LIB UV-SI-260 model is specifically designed for ASTM G154 and ISO 4892-3 accelerated weathering testing.
Main technical specifications include:
| Model | UV-SI-260 UVA 340 Fluorescent Lamp Light Fastness Test Instrument |  |
| Internal Dimension (mm) | 450*1170*500 | |
| Overall Dimension (mm) | 610*1330*1470 | |
| Specimen Holder Size(mm) | 75*150 | |
| Specimen Capacity | 52 Pieces | |
| Irradiation Source | Fluorescent UV lamps (8) - 40 W | |
| Temperature Range | Ambient ～ 90 ℃ ±2℃ | |
| Black Panel Temperature (BPT) | 35 ～ 80 ℃ | |
| Humidity Range | ≥95% RH | |
| Bandwidth | 290 ~ 400nm | |
| Irradiance Control | 0.3~20 W/㎡ | |
| Water Spray Cycle | 1~9999H59M (Adjustable) | |
| Distance of Specimen and lamp | 50mm | |

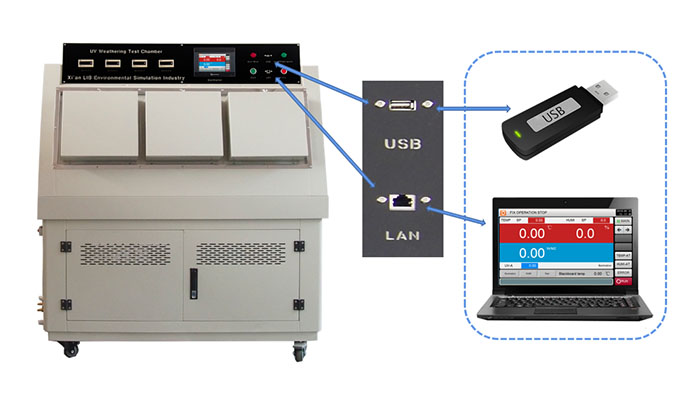

| Controller | Programmable color LCD touch screen controller, Ethernet connection | |
| Water Supply System | Automatic water supply, Water purification system | |
| Safety Device | Over-temperature Protection; Over-current Protection; | |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | ||
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 Stainless Steel |
The chamber interior uses SUS304 stainless steel for corrosion resistance and long-term stability.

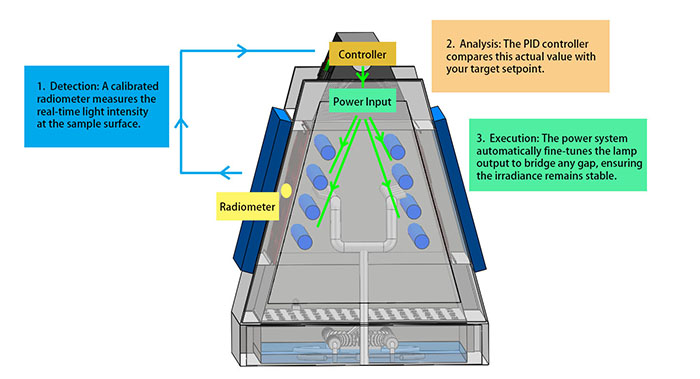

 | ① Stable Irradiance Control The irradiance monitoring system automatically compensates lamp aging to maintain stable UV intensity throughout long-duration testing. |

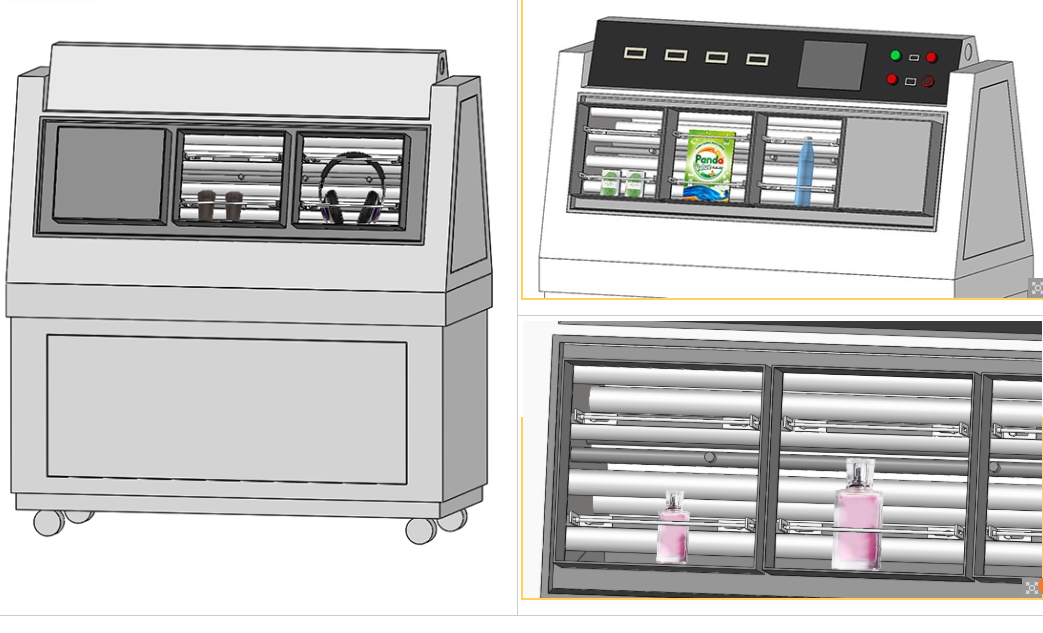

 | ② Accurate Temperature Uniformity Multi-point PT100 sensors combined with PID control maintain chamber temperature fluctuations within ±2 °C. ③Uniform Sample Holders for Stable Positioning and Consistent UV Exposure With a total capacity of up to 52 positions, the system allows flexible loading for various material types while maintaining secure fixation throughout the test process. |

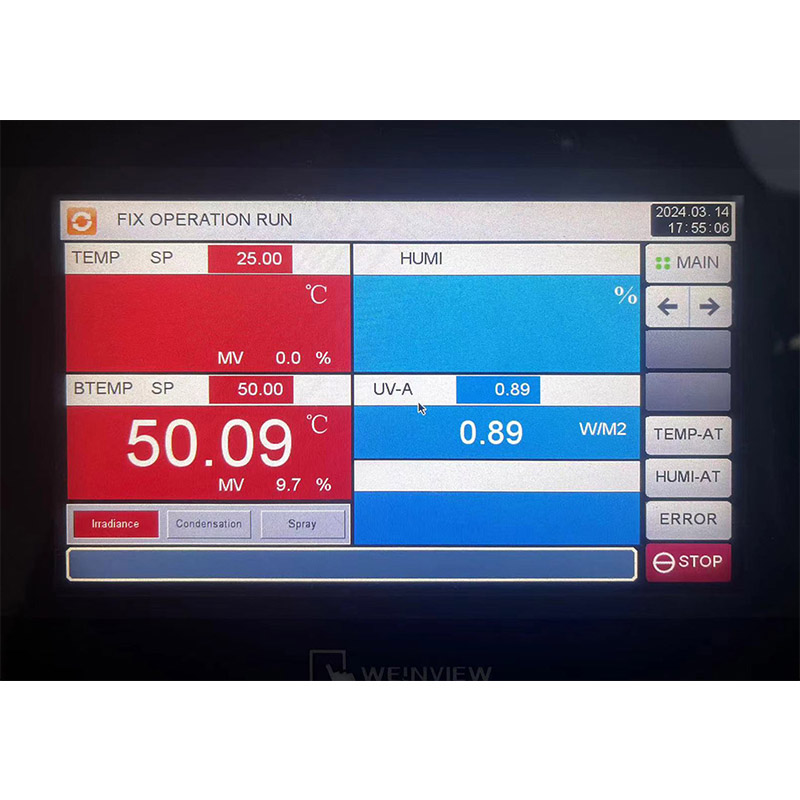

 | ④Flexible Cycle Programming Users can independently program UV exposure, condensation, spray, and temperature cycles from 1 minute to 9999 hours. The system supports the creation of up to 120 programmable test profiles, with each profile containing as many as 100 independent segments, enabling highly customized multi-stage testing sequences. Multilingual interface options, remote operation capability, automatic alarm functions, and timed start-up settings further enhance operational efficiency and reduce manual intervention. |

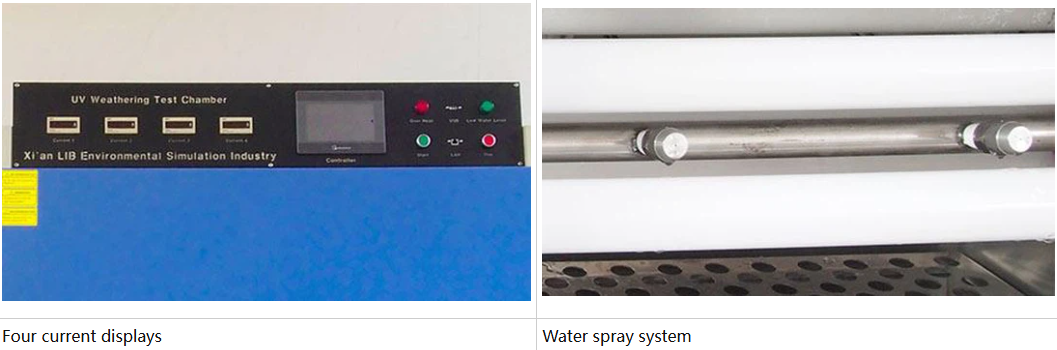

 | ⑤ Efficient Water and Energy Consumption The closed-loop water recovery system reduces water usage while improving operational efficiency during continuous testing. |
 | ⑥ Complete Data Traceability The system supports real-time logging and export of irradiance, temperature, and humidity data for ISO quality audits and long-term testing records. |
The equipment complies with major international standards including ASTM G154, ISO 4892-3, ASTM D4329, SAE J2020, and GB/T 16422.3.
The chamber is widely used for testing coatings, plastics, rubber, textiles, inks, automotive interiors, packaging materials, and composite products.
UVA-340 lamps simulate natural sunlight more accurately and are commonly used for outdoor weathering studies. UVB-313 lamps provide stronger short-wave UV energy for extremely accelerated aging applications.
LIB typically provides fast production and shipping within 7–15 days depending on the chamber configuration and voltage requirements.
LIB offers a 3-year warranty, lifetime technical support, and a 24/7 English-speaking after-sales service team. Components that cannot be repaired during the warranty period are replaced free of charge.
