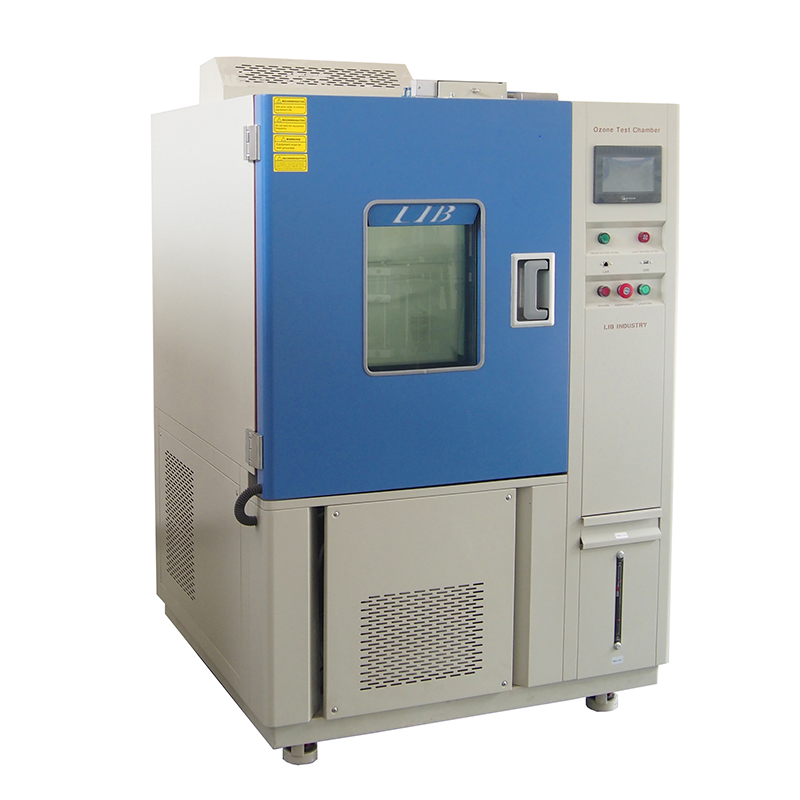

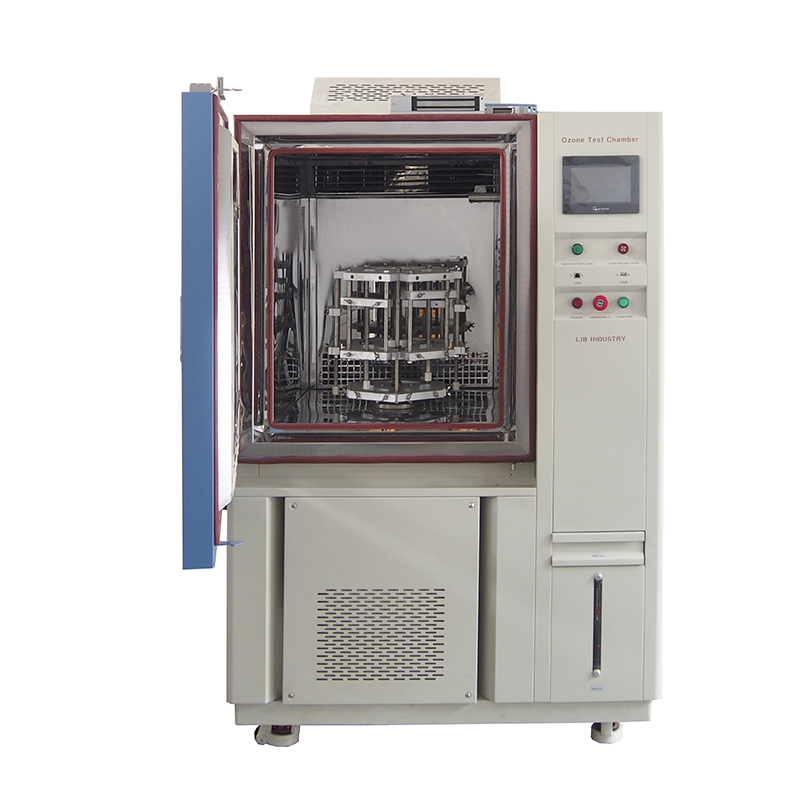

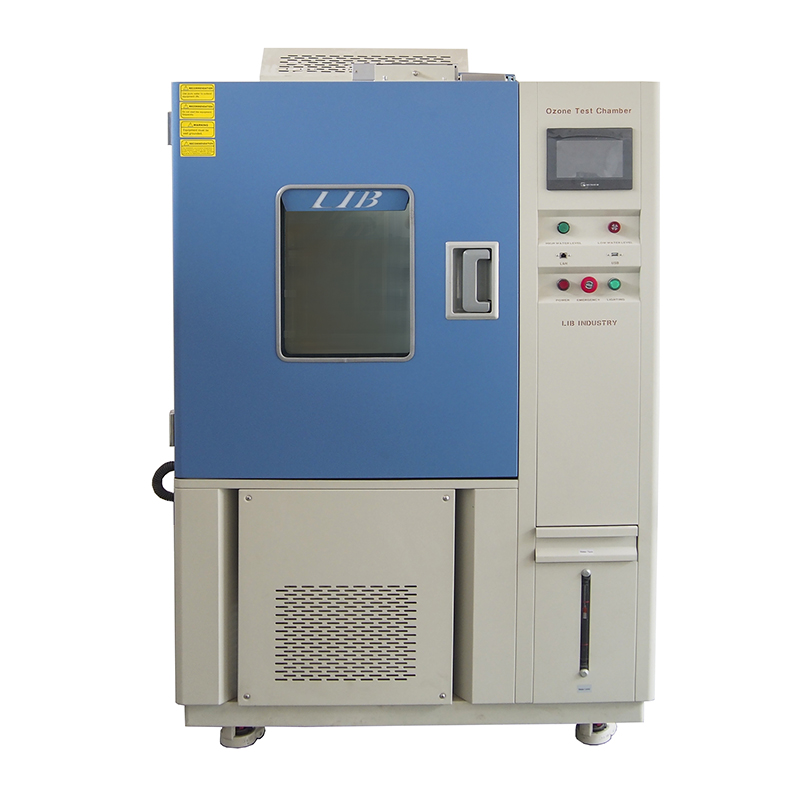

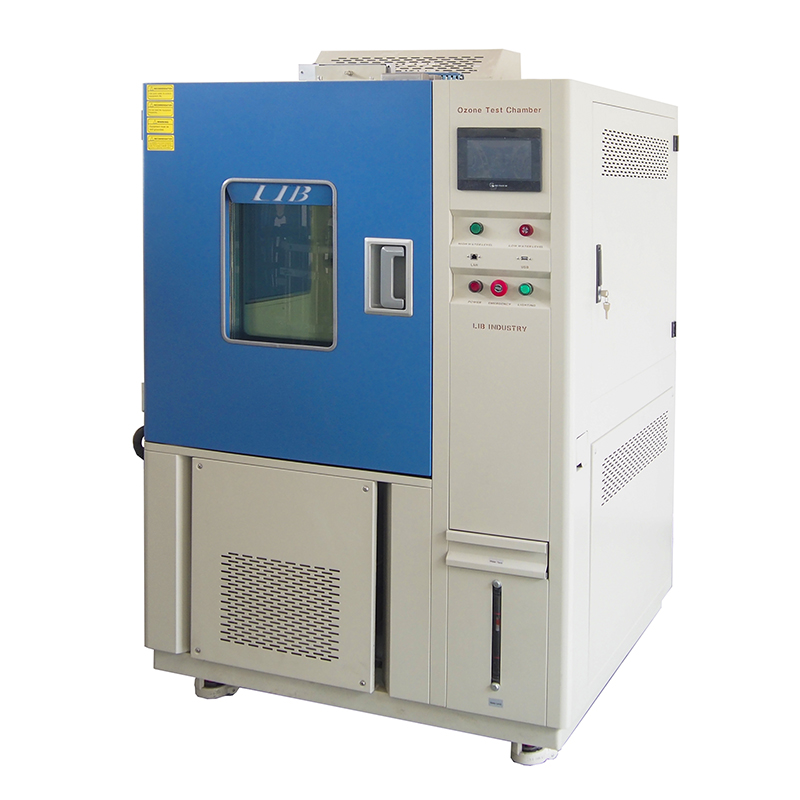

ASTM D1149 Rubber Testing Ozone Exposure Climatic Chamber

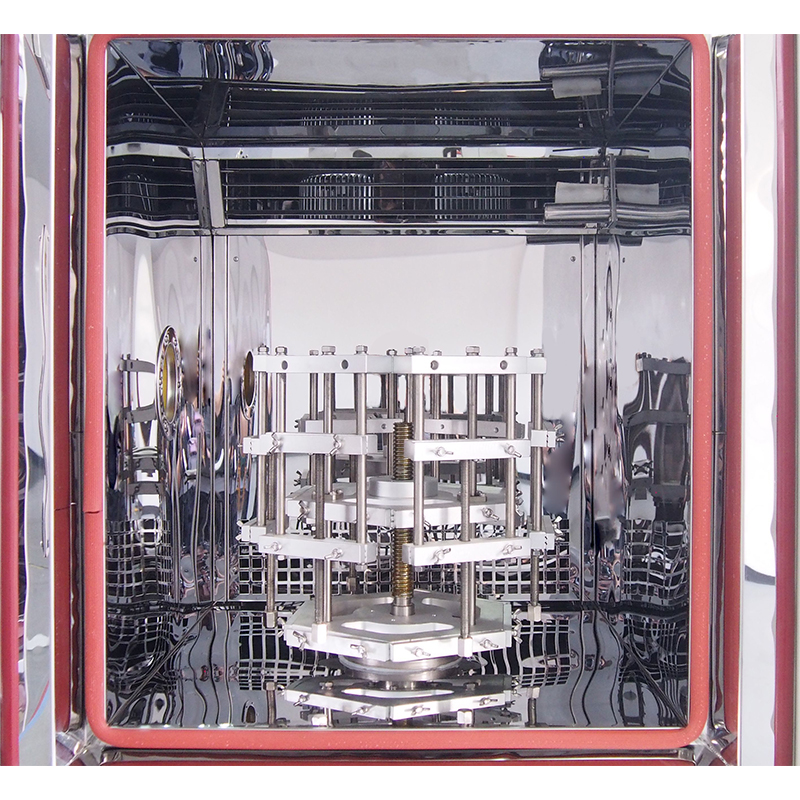

Built around a stainless-steel internal chamber to minimize ozone reaction, the unit isolates its ozone generator from the working space and circulates the air-ozone mixture with a sealed, externally driven fan to avoid stratification. Internal volume typically starts around 0.11 m³ on compact models and scales upward for larger production or multi-specimen batches. The equipment supports interchangeable fixtures for dynamic tensile elongation (specimens flexed between 0% and roughly 25% strain at about 0.5 Hz) and static strain mounting (straight, looped, tapered, or triangular specimens stretched to 10–20% elongation), letting one instrument cover essentially every procedure described in the standard. A programmable touchscreen controller logs ozone concentration, temperature, and elapsed exposure time, supporting the daily verification records required by most test protocols. The chamber is used across automotive (door seals, hoses, O-rings, weatherstrips, suspension bushings), electrical and power (cable jackets, insulating gloves, protective covers), and general industrial rubber (gaskets, conveyor belts, sealing rings) applications.

Performance Advantages Of the ASTM D1149 Rubber Testing Ozone Exposure Climatic Chamber

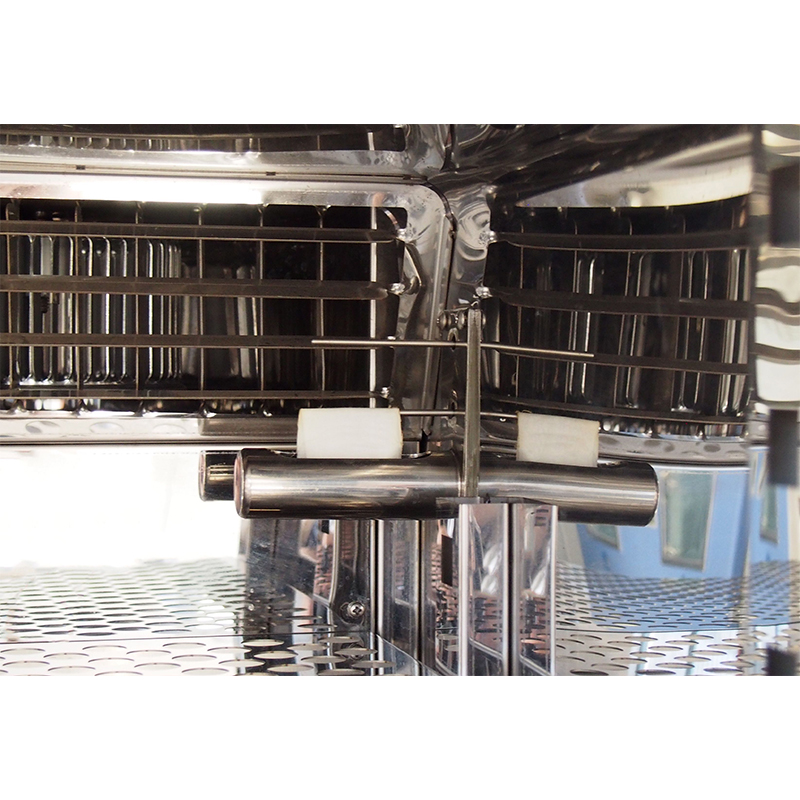

1. Steady, Accurate Ozone Levels:The chamber continuously monitors ozone concentration and automatically regulates output to maintain the set level within approximately ±10%, ensuring consistent exposure conditions even when test specimens absorb ozone during testing.

2. Reliable Temperature Control: Built-in heating and cooling keep the chamber at the standard 40°C test temperature, holding steady within about 1°C so results stay consistent from one test to the next.

3. Flexible Testing Modes: Swap in different fixtures depending on what you're testing: continuous flexing for dynamic strain tests, or fixed stretching for static strain tests like straight strips, loops, or tapered shapes.

4. Even Air Circulation:  Fans keep the ozone-air mixture moving so it doesn't settle in one spot, replacing about 75% of the chamber's air volume every minute to keep concentration steady even with samples inside.

5. Safe Exhaust Handling: Before the door opens, the ozone gets destroyed by a catalytic converter rather than released into the room, protecting operators from this harmful gas.

6. Built to Last : The stainless-steel interior and ozone-resistant seals hold up to repeated exposure cycles without breaking down, so the chamber keeps performing accurately over years of daily use.

Technical Specifications of the ASTM D1149 Rubber Testing Ozone Exposure Climatic Chamber

ASTM D1149 Test Methods and Test Conditions

The equipment runs both Method A (dynamic strain) and Method B (static strain) procedures from ASTM D1149. Under Method A, Procedure A1 (Tensile Elongation Test) cycles specimens through repeated stretching at roughly 25% amplitude, while Procedure A2 (Belt Flex Test) mounts specimens on a rotating belt for continuous flexing, typically over a 48-hour run. Under Method B, specimens are held at fixed elongation instead of being cycled: Procedure B1 uses straight specimens, Procedure B2 uses bent loop specimens, and Procedure B3 uses tapered specimens, commonly stretched to 10%, 15%, or 20%. Procedure B4 takes a different approach, looping triangular specimens around a mandrel for a 70–72 hour exposure and rating them either by crack severity (Exposure Rating) or pass/fail (Quality-Retention Rating).

Standard test conditions across these procedures are 40°C and roughly 50 pphm ozone partial pressure, with periodic inspection under magnification to catch the earliest cracking. The equipment suits automotive components (seals, hoses, O-rings, weatherstrips), electrical products (cable insulation, protective gloves, covers), and industrial rubber goods (gaskets, belts, seals), with results reported as time-to-first-crack, a severity rating, or pass/fail depending on the procedure used.

Video of the ASTM D1149 Rubber Testing Ozone Exposure Climatic Chamber

FAQs on the ASTM D1149 Rubber Testing Ozone Exposure Climatic Chamber

Q1: Can I run different ozone levels for different products?

Yes. Ozone level is fully programmable — pick a standard setting like 25, 50, 100, or 200 pphm, or dial in a custom level for a specific test program.

Q2: Is it safe to open the equipment right after a test?

Yes. Before the door unlocks, the ozone gets broken down by a built-in catalytic converter, so no harmful gas escapes into the lab.

Q3: Do I need different machines for stretch tests and flex tests?

No. One chamber handles both — just swap in the fixture you need, whether that's a stretching rack for static tests or a flexing rig for dynamic ones.

Q4: How long does it take to manufacture this chamber?

Standard units typically take 7–15 days to build. Custom configurations — like non-standard chamber sizes or specialized fixtures — may need extra time for engineering and testing before shipment.
